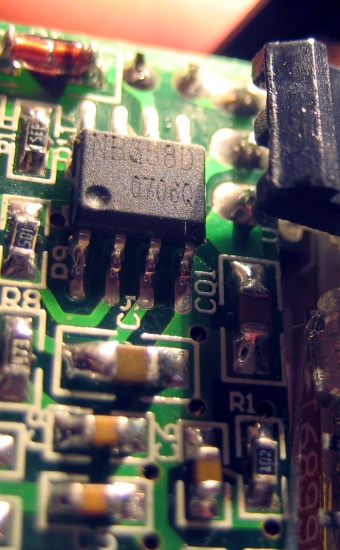

<keywords content="HN 6137, HX 2262, HX 2272, HN6137, HX2262, HX2272, HX2272-L2, HX 2272-L2, NB358D" /> <google>HX2262-HX2272</google> These switches is sold by Harald Nyborg in Denmark as HN 6137 a set with one remote and 3 switches.

  • Max power = 1000W
  • Radio frequency = 433,92 Mhz
  • Battery for remote is 12V

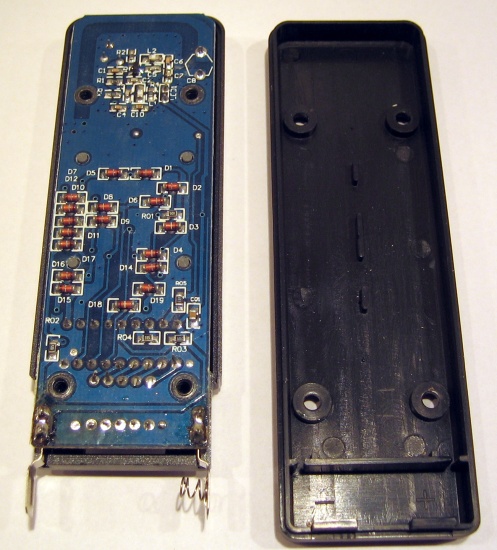

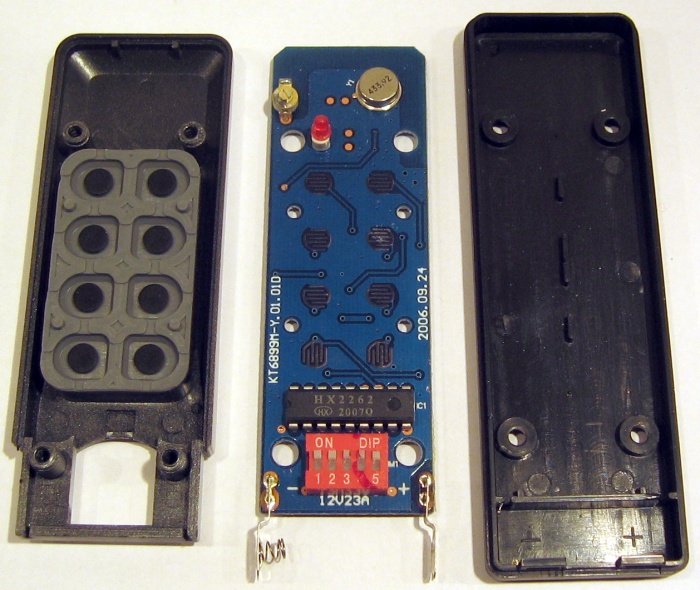

Remote control KT6899M-Y.01.010 2006.09.24

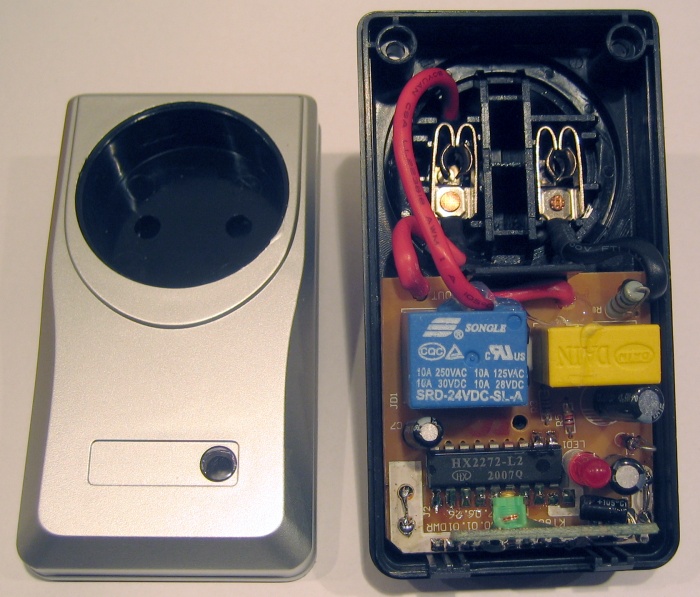

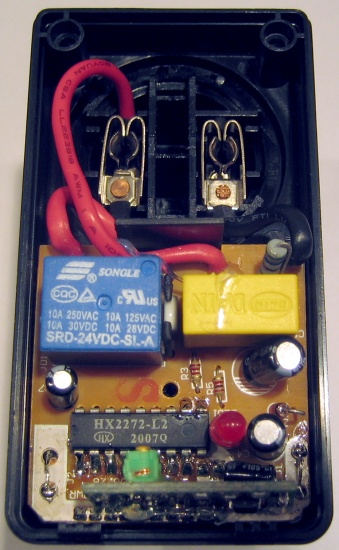

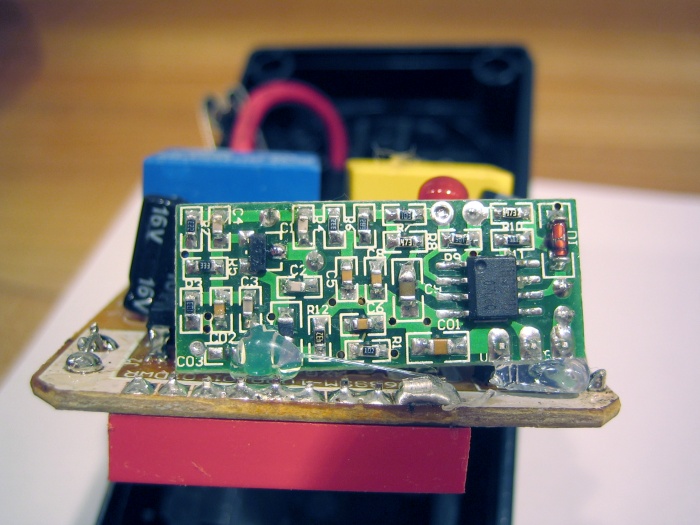

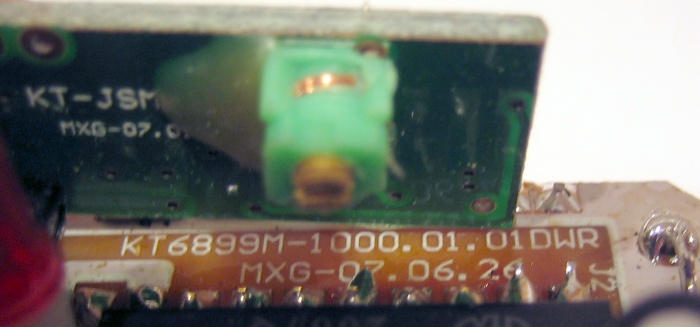

Receiver KT6899M-1000.01.01DWR MXG-07.06.26

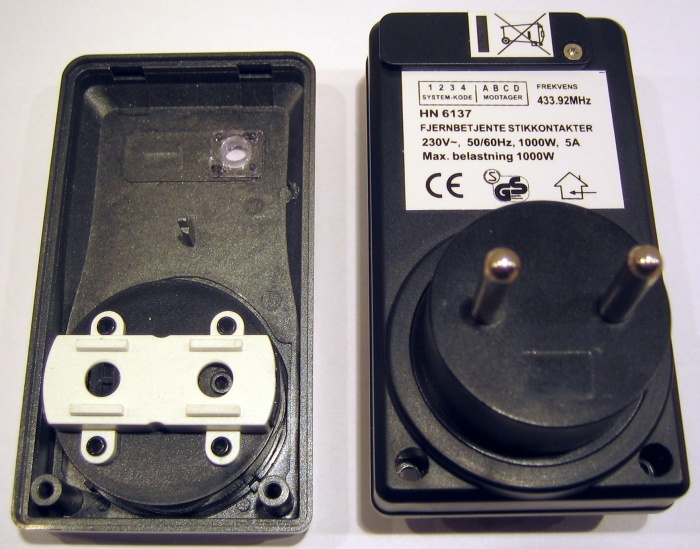

One of thes screws in the receiver is a special tamper-resistant one. It is not very hard to get out I used a needle-nose plier but I guess you can get it out with one or two small nails.

HN6137 IMG 7525 2.jpg

HN6137 IMG 7489 2.jpg HN6137 IMG 7477 2.jpg

HN6137 IMG 7490 2.jpg HN6137 IMG 7507 2.jpg

HN6137 IMG 7519 2.jpg

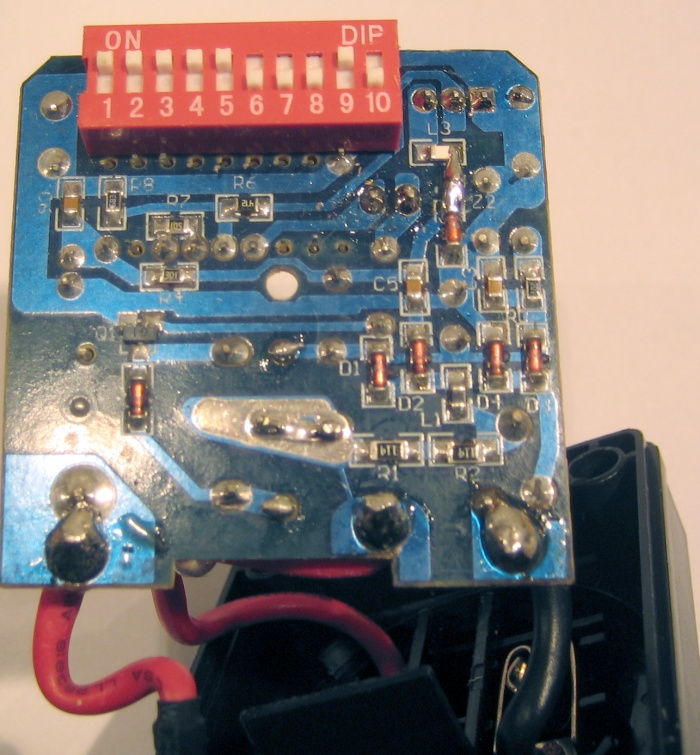

HN6137 IMG 7439 2.jpg

HN6137 IMG 7452 2.jpg

<google>HX2262-HX2272</google>

HN6137 IMG 7467 2.jpg HN6137 IMG 7521 2.jpg

HN6137 IMG 7454 2.jpg
